OVERHUNG ECCENTRIC SLOTTER MACHINE

MODEL: PM-ESM

CATEGORY: BASIC

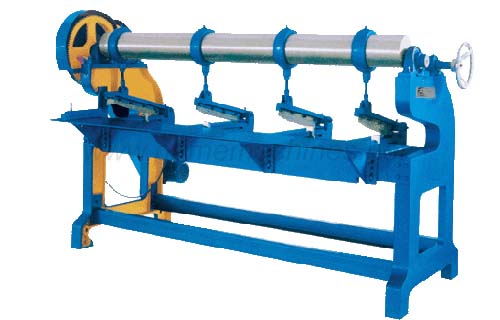

Overhung Eccentric Slotter Machine

FEATURES

  1. To slot and flap cut the corrugated board.

  2. Provided with gear motor drive, three slotting heads, and one corner head.

  3. Slotting heads are adjusted manually.

SPECIFICATIONS

MODEL

ESM-85

ESM-100

Max. Sheet Width (mm)

2150

2500

Slot Depth (mm)

410

410

Min Distance between slots (mm)

125

125

Power (kwh)

3

3

Floor Space (feet)

9.25 × 4.5

10.5 × 4.5



* Specifications and Design subject to change and improvement without prior notice
