PLATEN DIE CUTTER

MODEL: PM-PDC

CATEGORY: BASIC

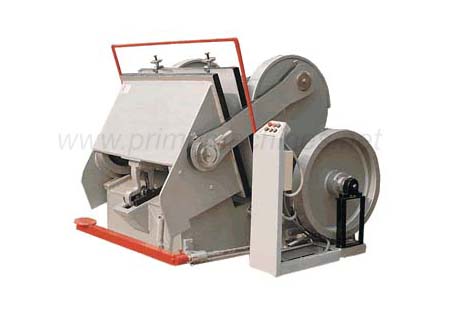

Platen Die Cutter

FEATURES

  1. Machine is meant for creasing, cutting, punching or embossing of cardboard cartons as well as corrugated boxes.

  2. Moveable platen is moving on hardened and grounded steel rails. Toothed bushes are provided for fine pressure adjustment.

  3. King size pull arms are made of forged steel.

  4. Safety guards are provided for emergency stop.

SPECIFICATIONS

MODEL

PDC/ 26 × 38

PDC/ 32 × 48

PDC/ 38 × 52

PDC/ 44 × 64

Platen Size

(mm)

660 × 960

810 × 1200

960 × 1320

1110 × 1620

Inside Chase Size (mm)

600 × 910

760 × 1140

900 × 1210

1060 × 1570

Imp / hour

900

900

750

750

Power (kwh)

3

5

7

10

Space Dimensions (feet)

4 × 4

5.5 × 5.5

6.5 × 6.5

7 ×7

* Specifications and Design subject to change and improvement without prior notice
