FLEXO PRINTER- LONGWAY

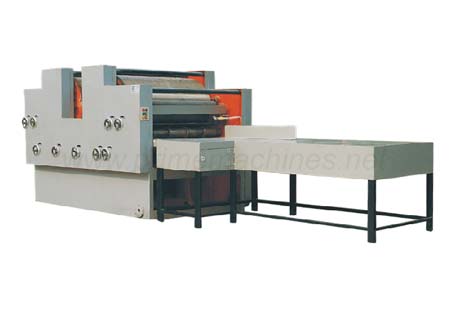

Flexo Printer Longway

FEATURES

FEEDING SECTION

  1. Precise and smooth operation

  2. Equipped with chain feeding system, ensure curved board can be fed smoothly.

PRINTING UNIT

  1. Using TOP printing system for printing.

  2. Printing Plate thickness upto 4mm.

  3. The pressure adjustment of Anilox & Rubber roller is controlled manually on adjustment wheels. Precise Anilox and rubber roller with micro adjustment of pressure to ensure good quality printing.

  4. Equipped with 2 creasing and 2 side trimming blade heads for putting height crease on the sheet.

SPECIFICATIONS

MODEL

FP /50×95

FP /60×95

Max Sheet Size

1200 × 2400

1500 × 2400

Min Sheet Size

350 × 750

350 × 750

Max Machine Speed (sheets/min)

50

50

Space Required (feet)

19.5 × 9

19.5 × 10

Power (kwh)

4

4

* Specifications and Design subject to change and improvement without prior notice
