PRIME BOX MAKER

CATEGORY: PREMIUM

BOX MAKER PREMIUM

FEATURES

FEEDING UNIT

  1. Precise and smooth operation.
  2. Equipped with vacuum suction kick feeding system with air adjusting volume function.
  3. Mild Steel fabricated feeding bed for smooth functioning of kick feed system.

PRINTING UNIT

  1. The Print Units are detachable with motorized movement.
  2. Using Bottom printing system to allow Top Fold at the folder gluer. Top Printing system is also available for printer slotter machines.
  3. The print running register is controlled by 360 degree circumferential movement on Push Button.
  4. Plate mounting on the print cylinders is done manually. Plate thickness upto 4mm.
  5. The pressure adjustment of Anilox & Rubber roller is controlled manually on adjustment worm gear box. Precise Anilox and rubber roller with micro adjustment of pressure to ensure good quality printing.
  6. Rubber Roller with AUTO IDLE system to prevent ink from drying on the roller when the machine is stopped.
  7. The Ink circulation system is automatic for a consistent viscosity of ink, by using diaphragm air pumps.

CREASER SLOTTER UNIT

  1. The Upper Slotter roller has a 360 degree circumferential movement for running register control operated by push button.
  2. Unit Movement is motorized.
  3. 4 sets of Slotting Heads and 4 sets of Creasing Heads.
  4. SHIFTING of upper and lower slotting heads along with creasing heads is done manually.
  5. Slot Depth/ Box Height setting on all the slotting heads is done in a single operation with the help of the adjustment shaft passing through each slotting head.
  6. Side Trim/ slot scrap removing belt with inline folder gluer machine.

FOLDER GLUER COUNTER EJECTOR UNIT

1.      With a Unique model of folder gluer, we offer a top folding method while maintaining the square folded boxes running at variable speeds.

2.      Up folding with extended folding length to eliminate fish tailing.

3.      Separate operator control station.

4.      The movement of FOLDING ARMS is motorized and can be adjusted according to the size of box to allow a gradual unforced fold.

5.      Adapted high friction conveyer belt on upper and lower folding belts. Press down style through belts.

6.      The upper and lower belts work synchronously for correct output

7.      Glue application on flap by easy to operate wheel applicator.

8.      Optional Feature of inline Squaring/ Counting/ Bundle ejection is also available.

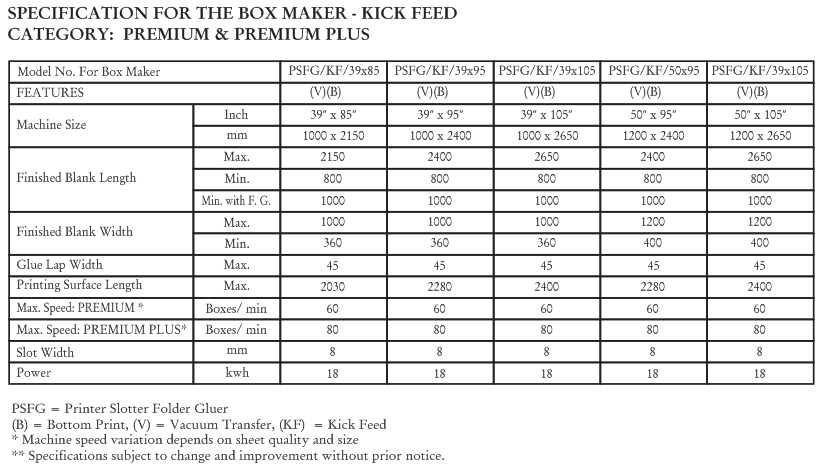

Specification


PRIME BOX MAKER - PREMIUM
