SHEET MAKING MACHINES
- 5 PLY CORRUGATOR PLANT
- SINGLE FACER MACHINES
- REEL STANDS
- ROTARY SHEET CUTTER
- THIN BLADE CREASER SLITTER
- ROTARY CREASER SLITTER
- PASTING MACHINE - BASIC
- HAND CUTTER - MANUAL
- SHEET PRESS - MANUAL
- SINGLE FACER WITH INLINE ROTARY SHEET CUTTER

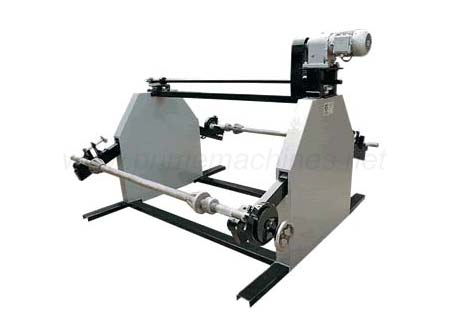

REEL STAND - SHAFT TYPE BASIC
FEATURES
-
Stationary Type (with twin shafts).
-
Max Reel Dia. 1150mm & 1500mm
-
Motorised Reel Lifting
-
Tension Control by manual brake.
-
Power Required 2 HP.
-
Max. Weight 1 Ton
-
Available width:1000mm-1575mm

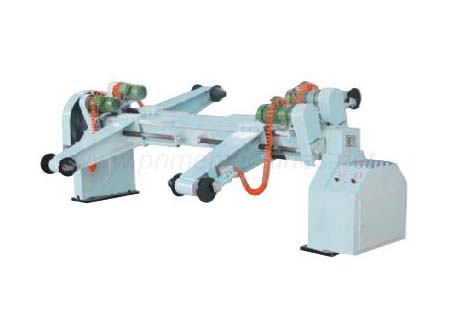

REEL STAND - SHAFTLESS PREMIUM
FEATURES
-
Swing Type
-
Max Reel Dia. 1500mm
-
Available width:1000mm-1830mm
-
Max Reel Width = Max machine size
-
Motorized Lifting and lowering
-
Motorized aligning and coring
-
Tension Control by manual brake.
-
Power Required 5 HP.
-
Max. Weight 2 Ton
* Specifications and Design subject to change and improvement without prior notice
